F-208098 35x52.09x26.5mm Printing Machine Bearings Full-Complement Cylindrical Roller Bearings

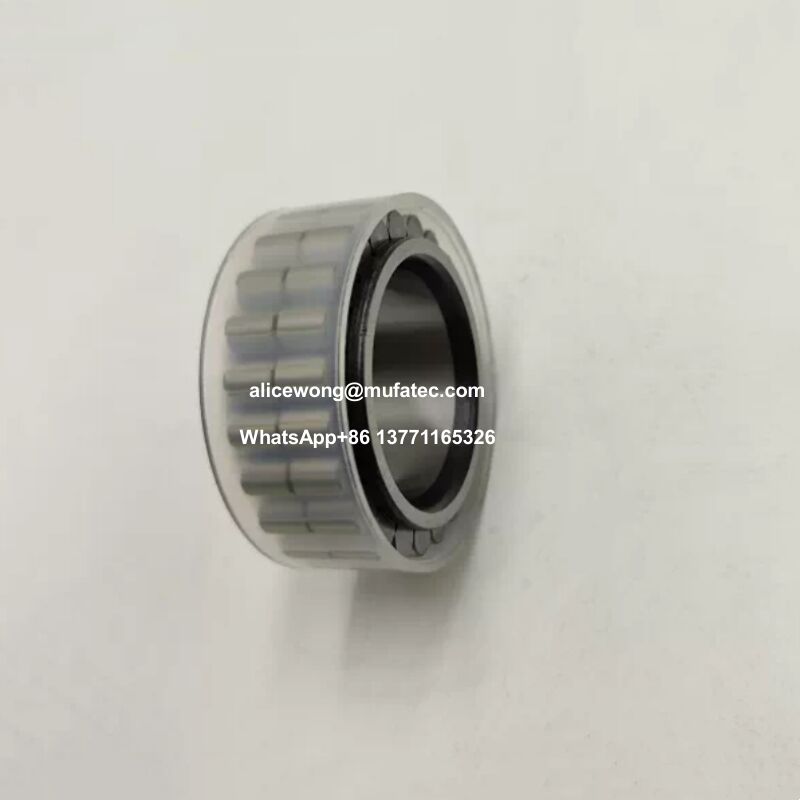

Photos of  F-208098:

Product Description

The F‑208098 Full‑Complement Cylindrical Roller Bearing is a precision‑engineered bearing designed without an outer ring. With a bore of 35 mm, an outer diameter of 52.09 mm (referencing the housing bore size), and a width of 26.5 mm, this compact, high‑capacity bearing delivers exceptional radial load support, high rigidity, and low operating noise – making it ideal for high‑speed printing machinery and precision industrial equipment.

Key Specifications & Features

• Model Number: F‑208098

• Bearing Type: Full‑complement cylindrical roller bearing (without outer ring) – rollers run directly on the hardened housing bore serving as the outer raceway

• Dimensions: ID 35 mm × OD (housing bore) 52.09 mm × Width 26.5 mm

• Weight: 0.2 kg

• Material: GCr15 chrome steel – high hardness, excellent wear resistance, and extended fatigue life

• Precision Grade: P0 (standard industrial accuracy)

• Seal Type: Open – enables efficient lubrication and heat dissipation

• Cage: No cage – full complement of rollers maximises roller count for superior radial load capacity

• Features: High‑speed capability, low vibration and noise levels, compact and lightweight design

Design & Performance

This bearing features a full‑complement cylindrical roller arrangement without an outer ring. By eliminating the outer ring, a greater number of rollers can be accommodated within the same envelope, significantly enhancing radial load‑carrying capacity and shock resistance. The rollers make line contact with both the hardened shaft (inner raceway) and the housing bore (outer raceway), ensuring even load distribution and high rigidity. The absence of a cage reduces friction, allows operation at elevated speeds, and minimises temperature rise. The open design ensures effective lubrication and cooling, which is essential for continuous high‑speed operation in printing applications.

Application

This bearing is specifically engineered for printing machinery, where high radial loads, compact dimensions, low noise, and high‑speed operation are critical. It is also suitable for other precision industrial equipment, including textile machines, packaging equipment, gearboxes, and rotary assemblies that require a robust, space‑saving cylindrical roller bearing without an outer ring.

Quality & Certification

Manufactured from premium GCr15 bearing steel under strict quality control, each bearing is inspected for dimensional accuracy, running smoothness, and noise levels to meet P0 precision standards and OEM requirements. The full‑complement design ensures consistent performance, low vibration, and extended service life under demanding operating conditions.

Packaging, Stock & Shipping

• Stock availability: Please inquire for current stock levels.

• Delivery time: 3–4 working days after payment confirmation

• Shipping methods: DHL / FedEx / UPS / TNT

• Shipping period: 6–10 working days (excluding remote areas)

• Payment terms: T/T, PayPal, Credit Card, or Debit Card – 100% in advance

• HS Code: 8482500090
