F-587440.RTR1-DY-W61 47.625x94.298x27.775mm Auto Differential Bearings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Full Model Number: | F-587440.RTR1-DY-W61 | Applications: | Auto Differential |
|---|---|---|---|
| Feature: | Imperial Tapered Roller Bearings | Bore Diameter(ID): | 47.625mm |
| Outer Diameter(OD): | 94.298mm | Thickness/Width(T): | 27.775mm |
| Weight: | *** Kg | Precision: | P0/P6/P5 Available |
| Seal Type: | No | Cage Material: | Steel |
| Rolling Elements: | Rollers | Bearing Series: | Taper Roller Bearing |
| Material: | GCr15 Chrome Steel | Shipping Ways: | DHL / FedEx / UPS / TNT |
| HS Code: | 8482500090 | Stock: | 66 Pcs |
| Delivery Time: | 3~4 Workdays For Normal Quantity Order | Shipping Period: | 6~10 Workdays(Except Remote Areas Or Countries) |
| Payment Ways: | T/T,Western Union,PayPal,Credit Card,Debit Card |
MUFA TEC Bearings provide F-587440.RTR1-DY-W61 47.625x94.298x27.775mm Auto Differential Bearings. You can reach us at email alicewong@mufatec.com or WhatsApp +86 13771165326.

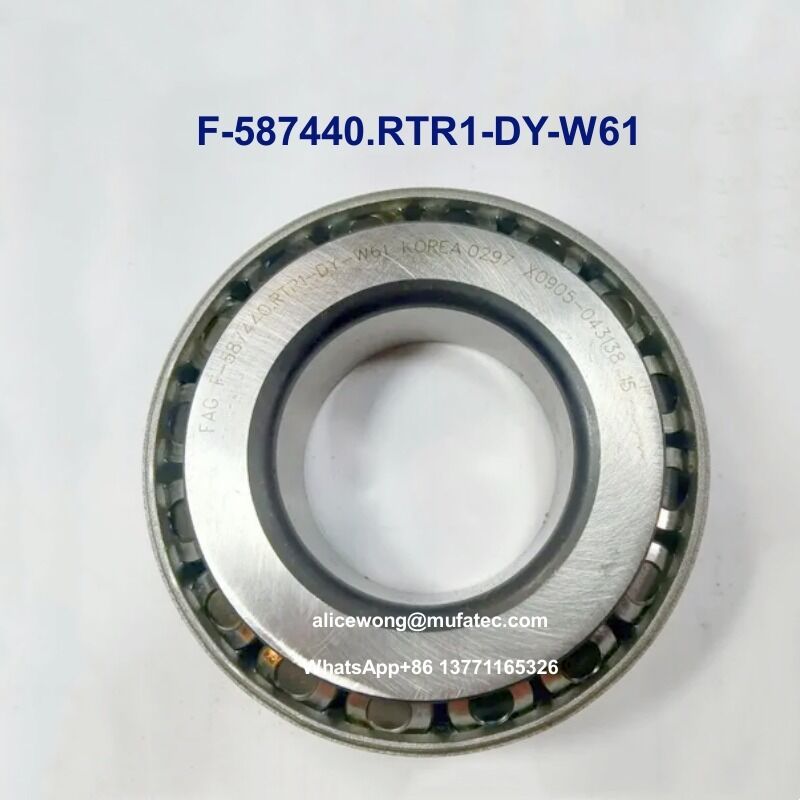

Photos of F-587440.RTR1-DY-W61:
Product Description
The F-587440.RTR1-DY-W61 is a precision-engineered imperial single-row tapered roller bearing, specifically designed for automotive differential and driveline applications. Manufactured to stringent quality standards, this bearing is a direct replacement for OEM part numbers including 2N0525337A and is compatible with applications such as the Dana Super 60 front axle (M256) and Volkswagen Crafter differential systems.
Tapered roller bearings are the industry-preferred choice for differential pinion and carrier support, as they efficiently manage high simultaneous radial and axial loads while delivering superior rigidity and durability under demanding operating conditions. This bearing features optimized internal geometry and precision-machined tapered rollers that ensure smooth rotation, reduced friction, and extended service life.
Key Features & Specifications
| Parameter | Specification |
|---|---|
| Model Number | F-587440.RTR1-DY-W61 |
| Type | Imperial Single-Row Tapered Roller Bearing (Cone / Inner Ring Assembly) |
| Bore Diameter (ID) | 47.625 mm (1.8750 in) |
| Outer Diameter (OD) | 94.298 mm |
| Width (T) | 27.775 mm |
| Material | GCr15 Chrome Steel (high-carbon chromium bearing steel) |
| Cage Material | Steel |
| Rolling Elements | Tapered Rollers |
| Precision Class | P0 (standard) / P6 / P5 available upon request |
| Seal Type | None (open design) |
| Applications | Automotive differentials, drive pinions, axle carriers, transmissions |
Why Choose This Bearing?
-
Superior Load Capacity – The line contact between tapered rollers and raceways provides a wider weight-bearing surface than ball bearings, enabling higher radial and axial load-carrying capacity in a compact design.
-
Precision Engineering – Manufactured from GCr15 chrome steel with excellent wear resistance, dimensional stability, and fatigue strength for demanding automotive environments.
-
Automotive-Grade Reliability – Specifically engineered for differential pinion and carrier support, where high stiffness and durability are critical.
-
Separable Design – The cone (inner ring) and cup (outer ring) are separable, facilitating easy installation and maintenance.
Applications
This bearing is widely used in:
-
Automotive differentials – pinion and carrier shaft support
-
Drive axles – front and rear axle assemblies
-
Transmissions and gearboxes
-
Heavy-duty trucks and commercial vehicles – including Ford Super Duty F-250/350/450/550 with Dana Super 60 axles
-
Volkswagen Crafter differential systems
Shipping & Logistics
| Item | Detail |
|---|---|
| Stock Availability | 66 Pcs |
| Delivery Time | 3–4 working days for normal quantity orders |
| Shipping Period | 6–10 working days (excluding remote areas) |
| Shipping Methods | DHL / FedEx / UPS / TNT |
| Payment Terms | T/T, Western Union, PayPal, Credit Card, Debit Card |
| HS Code | 8482500090 |
