4074-84105 25x47x22mm Full Complement Needle Roller Bearings Printing Press Bearings

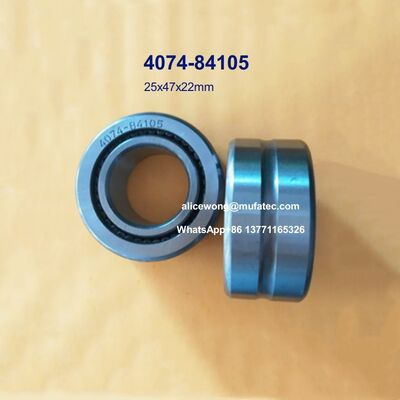

Photos of 4074-84105:

Product Description

The 4074-84105 is a high-performance Full Complement Needle Roller Bearing with precise dimensions of 25mm x 47mm x 22mm (Inner Diameter x Outer Diameter x Width). Engineered without a cage, this "full complement" design maximizes the number of needle rollers, delivering exceptional radial load capacity within a compact cross-section. Manufactured from high-grade GCr15 chrome steel, it offers superior durability and wear resistance for demanding industrial environments.

This bearing is specifically designed for printing press machinery and other heavy-duty applications requiring high load capacity and precise, smooth operation. Available in P0, P6, and P5 precision grades, it ensures minimal friction, low operational noise, and extended service life.

Technical Specifications

Key Features & Advantages

• Maximum Load Capacity: The full complement of rollers (no cage) allows for a higher number of rolling elements, significantly increasing the bearing's radial load-carrying capability compared to standard caged bearings.

• Compact & Robust Design: Provides exceptional load handling in a space-saving 25x47x22mm envelope, making it ideal for applications with limited installation space.

• Superior Durability: Constructed from high-quality GCr15 chrome steel for excellent wear resistance and long operational life under heavy loads.

• Precision Performance: Available in multiple precision grades (P0, P6, P5) to suit various operational requirements, ensuring smooth and accurate rotation.

• Versatile Application: Specifically tailored for printing presses but also suitable for gearboxes, conveyors, and other heavy industrial machinery.

Applications

• Printing Press Machinery (Primary Application)

• Industrial Gearboxes & Reducers

• Conveyor Systems

• Heavy-Duty Industrial Equipment
