NAV4005 25x47x22mm full-complement needle roller bearings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Full Model Number: | NAV4005 | Application: | Printing Machine |
|---|---|---|---|
| Feature: | Full-complement Needle Roller Bearings | Bore Diamete3r(ID): | 25mm |
| Outer Diameter(OD): | 47mm | Width(B/T): | 22mm |
| Weight: | ***Kg | Precision: | P0/P6/P5 Available |
| Seal Type: | Open | Cage Material: | No Cage |
| Rolling Elements: | Rollers | Material: | GCr15 Chrome Steel |
| Bearing Series: | Needle Roller Bearing | HS Code: | 8482500090 |
| Stock: | 69 Pcs. | Delivery Time: | 3~4 Workdays Against Payment |
| Payment Ways: | T/T,Western Union,PayPal,Credit Card,Debit Card | Shipping Ways: | DHL / FedEx / UPS / TNT |
| Shipping Period: | 6~10 Workdays(Except Remote Areas Or Countries) |
MUFA TEC Bearings provide NAV4005 25x47x22mm full-complement needle roller bearings. Pls feel free to contact us at Email alicewong@mufatec.com or at WhatsApp +86 13771165326,if you need more details for NAV4005.

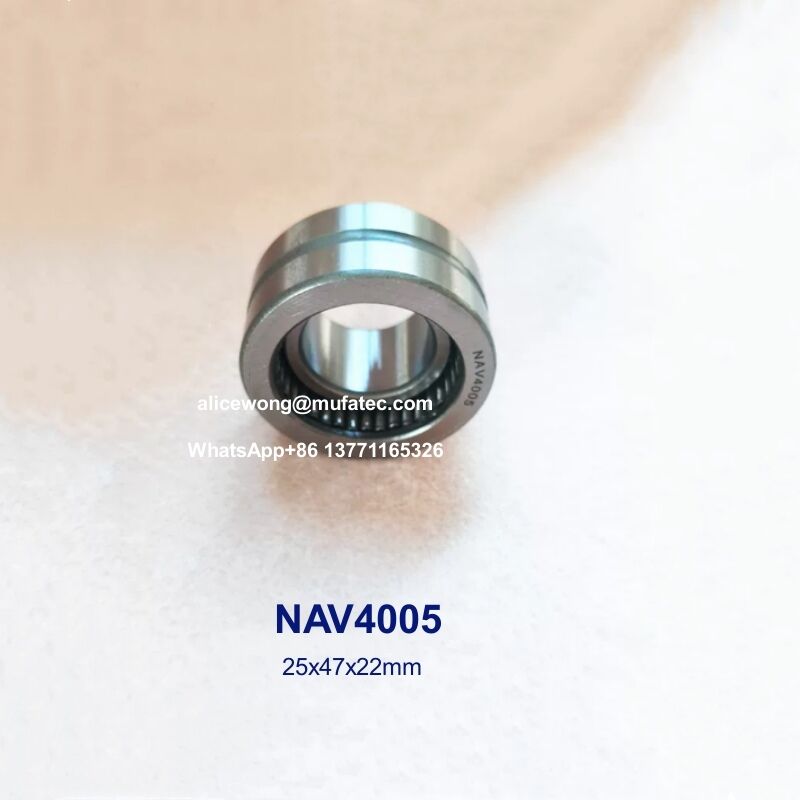

Photos of NAV4005:
Product Description
The NAV4005 is a full-complement needle roller bearing measuring 25mm (bore) x 47mm (OD) x 22mm (width). It features a machined outer ring with integral flanges and is supplied with an inner ring, making it suitable for applications where the shaft cannot be directly used as a raceway.
The full-complement design (no cage) maximizes the number of rollers, providing high radial load capacity and rigidity within a compact cross-section. This bearing is commonly used in printing machinery and other industrial equipment requiring high load support in restricted radial spaces.
Key Specifications:
| Attribute | Value |
|---|---|
| Bearing Type | Full Complement Needle Roller Bearing |
| Series | NAV Series (with Inner Ring) |
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 47 mm |
| Width (C) | 22 mm |
| Cage | None (Full Complement) |
| Seal Type | Open |
| Material | GCr15 Chrome Steel |
| Weight | Approx. 195 g |
| Dynamic Load Rating (Cr) | 33,800 N |
| Static Load Rating (Cor) | 70,800 N |
| Limiting Speed (Oil) | 3,700 rpm |
| Application | Printing Machine |
