R38Z-13 38.112x68.288x16/20.5mm automotive gearbox bearings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Full Model Number: | R38Z-13 | Applications: | Automotive Gaerbox Bearings |
|---|---|---|---|
| Feature: | Imperial Tapered Roller Bearings | Bore Diameter(ID): | 38.112mm |
| Outer Diameter(OD): | 68.288mm | Width(T/B): | 16/20.5mm |
| Precision: | P0/P6/P5 Available | Seal Type: | No |
| Cage Material: | Steel Cage | Rolling Elements: | Rollers |
| Bearing Series: | Tapered Roller Bearings | Bearing Weight: | 0.291kg |
| Material: | GCr15 Chrome Steel | Shipping Ways: | DHL / FedEx / UPS / TNT |
| Stock: | 51 Pcs | HS Code: | 8482500090 |
| Delivery Time: | 3~4 Workdays For Normal Quantity Order | Shipping Period: | 6~10 Workdays(Except Remote Areas Or Countries) |
| Payment Ways: | T/T,Western Union,PayPal,Credit Card,Debit Card |
MUFA TEC Bearings provides R38Z-13 38.112x68.288x16/20.5mm automotive gearbox bearings. Pls feel free to contact us at email alicewong@mufatec.com or at WhatsApp +86 13771165326, if you need more details of bearings R38Z-13.

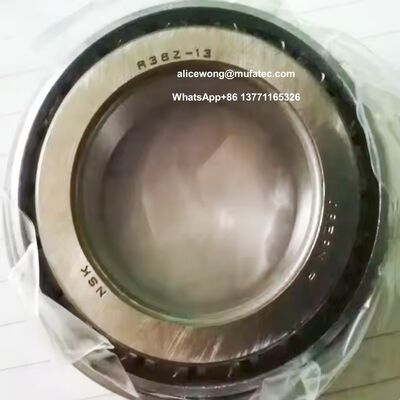

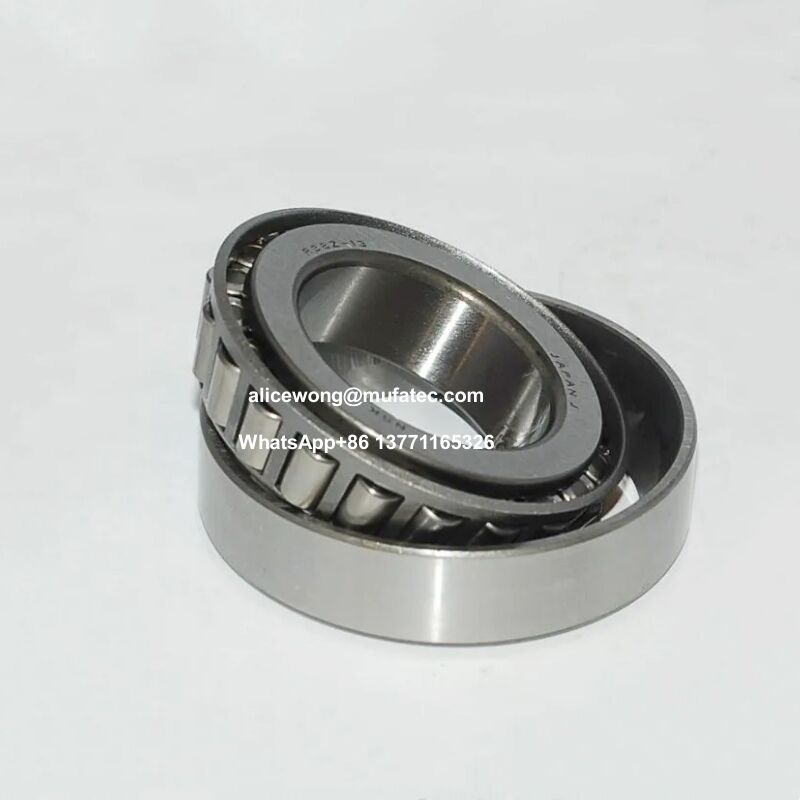

Photos of R38Z-13:
Product Description
The R38Z-13 is a single-row tapered roller bearing measuring 38.112mm (bore) x 68.288mm (OD) x 20mm (total width). Designed for automotive gearbox applications, it accommodates combined radial and axial loads in demanding drivetrain conditions.
Manufactured from GCr15 chrome steel with a steel cage, this bearing is supplied in an open configuration. Its separable cone and cup design allows for convenient mounting and maintenance.
Key Specifications:
| Attribute | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Bore Diameter (d) | 38.112 mm |
| Outer Diameter (D) | 68.288 mm |
| Total Width (T) | 20 mm |
| Inner Ring Width (B) | 16.5 mm |
| Outer Ring Width (C) | 16 mm |
| Cage Material | Steel |
| Seal Type | Open |
| Material | GCr15 Chrome Steel |
| Weight | Approx. 0.28 kg |
| Application | Automotive Gearbox |
| HS Code | 8482200000 |
Cross Reference:
This bearing corresponds to OEM references including 8-94203-089-0, 8942030890, 201521A, and 19150-R/19268 X.
