R38Z-25A/R38Z-24 38.1x65.088x18.288/19.812mm automotive differential bearings
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Full Model Number: | R38Z-25A/R38Z-24 | Applications: | Automotive Differential Bearings |
|---|---|---|---|
| Feature: | Imperial Tapered Roller Bearings | Bore Diameter(ID): | 38.1mm |
| Outer Diameter(OD): | 65.088mm | Width(T/B): | 18.288/19.812mm |
| Precision: | P0/P6/P5 Available | Seal Type: | No |
| Cage Material: | Steel Cage | Rolling Elements: | Rollers |
| Bearing Series: | Tapered Roller Bearings | Bearing Weight: | 0.25kg |
| Material: | GCr15 Chrome Steel | Shipping Ways: | DHL / FedEx / UPS / TNT |
| Stock: | 52 Pcs | HS Code: | 8482500090 |
| Delivery Time: | 3~4 Workdays For Normal Quantity Order | Shipping Period: | 6~10 Workdays(Except Remote Areas Or Countries) |
| Payment Ways: | T/T,Western Union,PayPal,Credit Card,Debit Card |
MUFA TEC Bearings provides R38Z-25A/R38Z-24 38.1x65.088x18.288/19.812mm automotive differential bearings. Pls feel free to contact us at email alicewong@mufatec.com or at WhatsApp +86 13771165326, if you need more details of bearings R38Z-25A/R38Z-24.

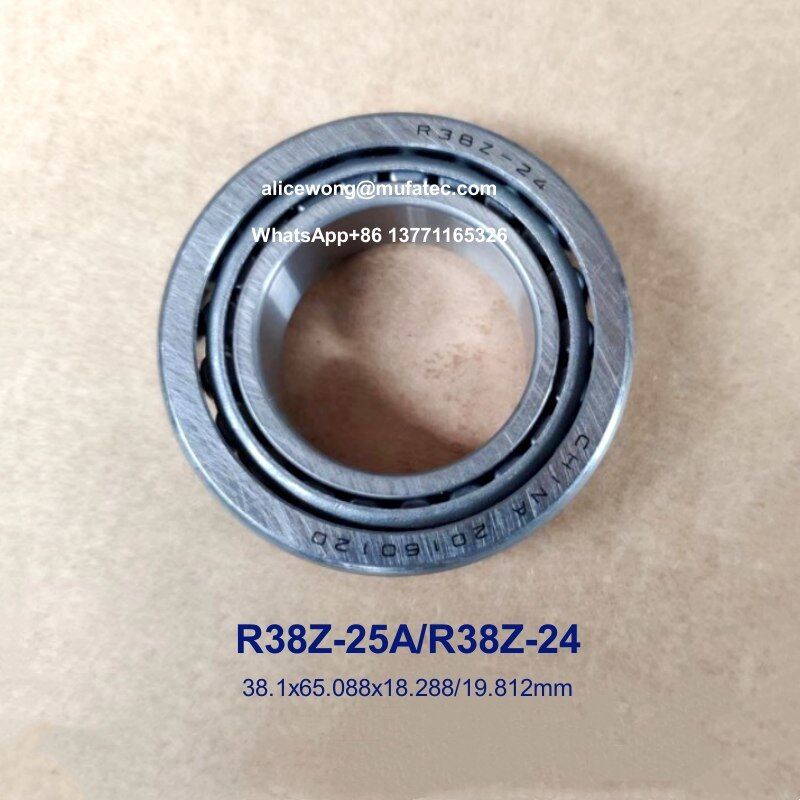

Photos of R38Z-25A/R38Z-24:
Product Description
The R38Z-25A/R38Z-24 is a single-row tapered roller bearing measuring 38.1mm (bore) x 65.088mm (OD) x 19.812mm (total width). It is designed for automotive gearbox and differential applications, commonly used in Ford / VW / VAG transmissions.
Manufactured from GCr15 chrome steel with a steel cage, this bearing is supplied in an open configuration. Its separable cone and cup design allows for convenient mounting and maintenance.
Key Specifications:
| Attribute | Value |
|---|---|
| Bearing Type | Single Row Tapered Roller Bearing |
| Bore Diameter (d) | 38.1 mm |
| Outer Diameter (D) | 65.088 mm |
| Total Width (T) | 19.812 mm |
| Inner Ring Width (B) | 18.288 mm |
| Outer Ring Width (C) | 15.748 mm |
| Cage Material | Steel |
| Seal Type | Open |
| Material | GCr15 Chrome Steel |
| Weight | Approx. 0.25 kg |
| Application | Ford / VW / VAG Gearbox & Differential |
| HS Code | 8482200000 |
Cross Reference:
-
NTN: LM29749/LM29711
-
OEM: 02M311214 / 5092541 / R38Z-24
