28T62-18FS Gearbox Bearings 28x62x18mm

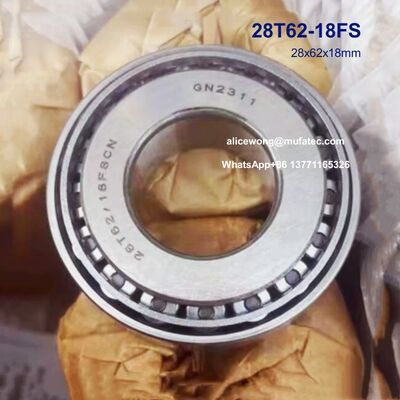

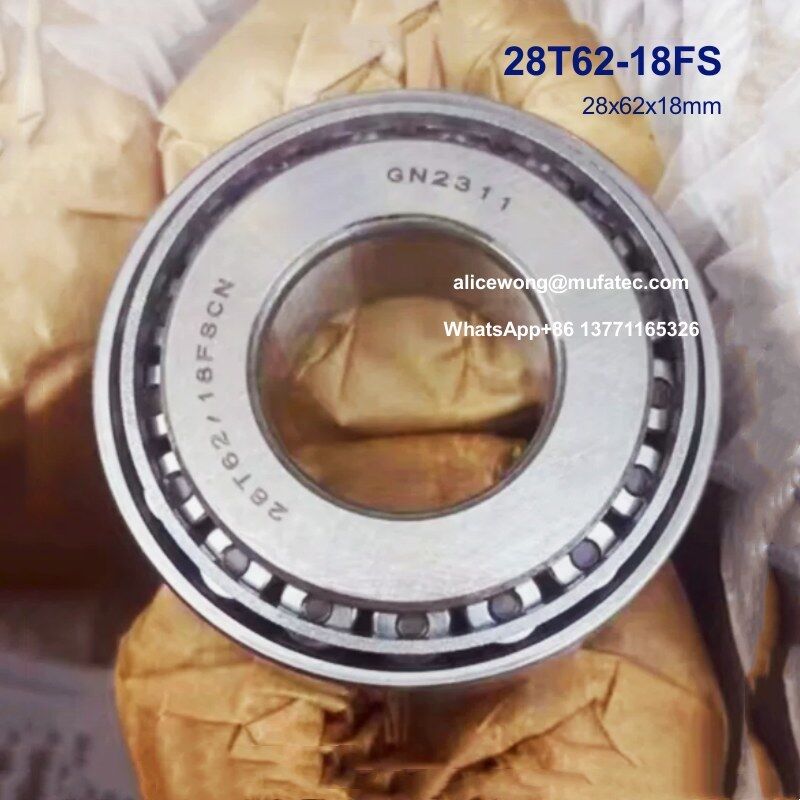

Photos of 28T62-18FS:

The 28T62-18FS Tapered Roller Bearing is a precision-engineered single-row tapered roller bearing designed specifically for gearbox and transmission applications. With compact dimensions of 28mm bore diameter, 62mm outer diameter, and 18mm width, this bearing delivers reliable performance in space-constrained mechanical assemblies.

Key Features & Technical Specifications:

• Bearing Type: Single-row Tapered Roller Bearing

• Model Number: 28T62-18FS / 970215

• Dimensions: 28mm (ID) × 62mm (OD) × 18mm (Width)

• Weight: Approx. 0.3 kg

• Material: GCr15 Chrome Steel – high wear resistance and durability

• Precision Grades: Available in P0, P6, and P5 accuracy classes

• Seal Type: Open design

• Cage: No cage (full complement roller design)

• Rolling Elements: Tapered rollers

• Max Speed: Up to 20,000 RPM

• Metric System

Design & Performance:

Tapered roller bearings feature an inner ring, outer ring, and tapered rolling elements that work together to accommodate both radial and axial (thrust) loads simultaneously. The unique conical design of the rollers allows the bearing to handle combined loads effectively, making it ideal for moderate-to-heavy-duty applications with multi-directional loading. The separable design enables easy mounting and maintenance.

Applications:

This bearing is purpose-built for automotive and industrial gearboxes and transmission systems. Additional applications include:

• Differentials and axle housings

• Wheel hubs

• Construction machinery and mining equipment

• Agricultural machinery

• Rolling mills and heavy-duty industrial equipment

Quality & Certification:

Manufactured from high-quality GCr15 chrome steel with ISO 9001:2000 certification, this bearing ensures long service life, high reliability, and stable performance under demanding operating conditions.

Packaging & Shipping:

• Stock: 49 Pcs.

• Delivery Time: 3–4 working days against payment

• Shipping Methods: DHL / FedEx / UPS / TNT

• Shipping Period: 6–10 working days (excluding remote areas)

• Payment Terms: T/T, Western Union, PayPal, Credit Card, Debit Card

• HS Code: 8482102000
