F-567523.SKL Automotive Gearbox Bearings 35x85x36.5mm

MUFA TEC Bearings provide  F-567523.SKL Automotive Gearbox Bearings 35x85x36.5mm. You can reach us at email alicewong@mufatec.com or WhatsApp +86 13771165326.

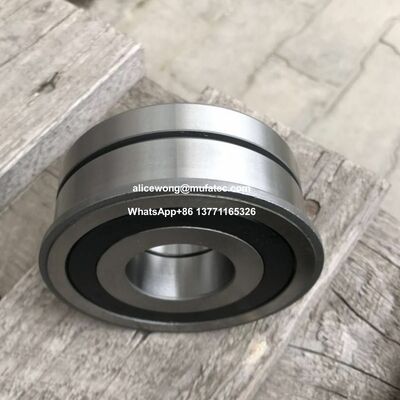

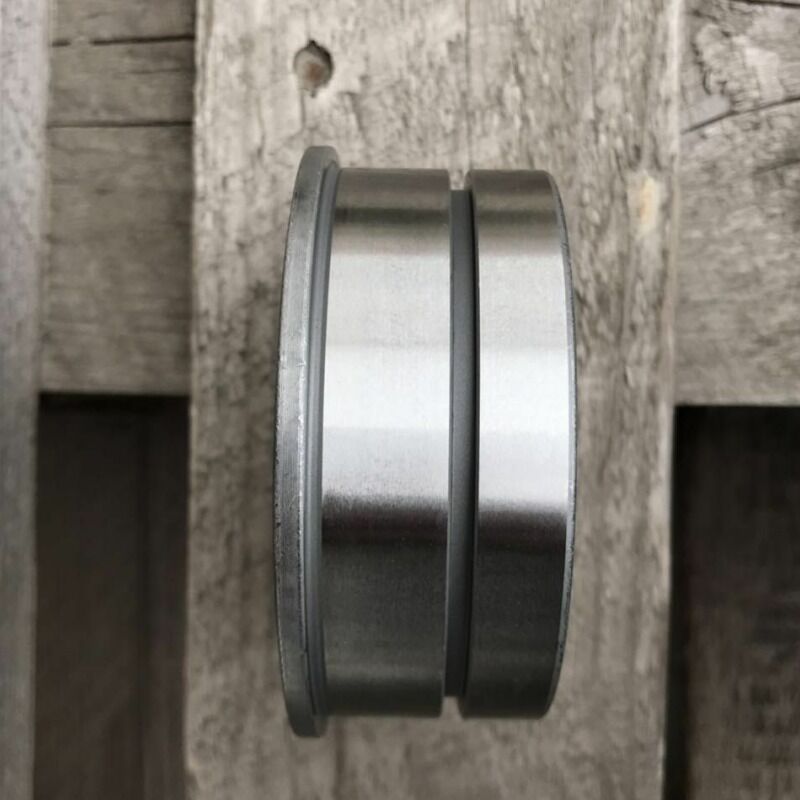

Photos of F-567523.SKL:

Product Description

The F-567523.SKL Double-Row Angular Contact Ball Bearing is a precision-engineered bearing designed specifically for automotive gearbox and transmission applications. With a bore of 35 mm, an outer diameter of 85 mm, and a width of 36.5 mm, this bearing delivers outstanding axial and radial load capacity, high rigidity, and reliable performance in demanding drivetrain environments.

Key Specifications & Features

• Model Number: F-567523.SKL

• Bearing Type: Double-row angular contact ball bearing

• Dimensions: ID 35 mm × OD 85 mm × Width 36.5 mm

• Material: GCr15 chrome steel – high hardness, excellent wear resistance, and extended fatigue life

• Precision Grades: Available in P0, P6, and P5 accuracy classes to suit different assembly requirements

• Seal Type: 2RS (double rubber seals) – provides excellent contamination protection and grease retention, reducing maintenance needs

• Cage: Nylon cage – lightweight, low friction, and excellent high-speed performance

• Rolling Elements: Balls (angular contact design for combined radial and axial loads)

Design & Performance

This double-row angular contact ball bearing features two rows of balls arranged at an angle to the bearing axis, enabling it to support both radial and axial loads simultaneously – in either direction. The duplex design provides high rigidity and moment load capacity, making it ideal for gearbox shafts where precise shaft positioning and thrust load management are critical. The nylon cage ensures smooth rolling, reduced friction, and quiet operation even at elevated speeds. The 2RS rubber seals effectively prevent contaminants from entering the bearing while retaining lubricant, ensuring long service life with minimal maintenance.

Application

This bearing is specifically engineered for automotive gearboxes and transmissions. It is also suitable for other powertrain components, including transfer cases, differentials, and axle drives, as well as industrial gearboxes and heavy-equipment transmissions where compact dimensions and high load capacity are required.

Quality & Certification

Manufactured from premium GCr15 bearing steel under strict quality control, each bearing is inspected for dimensional accuracy, running smoothness, and load performance to meet or exceed OEM specifications. The double-row design ensures consistent load distribution, low vibration, and extended service life.

Packaging, Stock & Shipping

• Stock availability: 36 pcs.

• Delivery time: 3–4 working days for normal quantity orders

• Shipping methods: DHL / FedEx / UPS / TNT

• Shipping period: 6–10 working days (excluding remote areas)

• Payment terms: T/T, Western Union, PayPal, Credit Card, Debit Card

• HS Code: 8482103000
